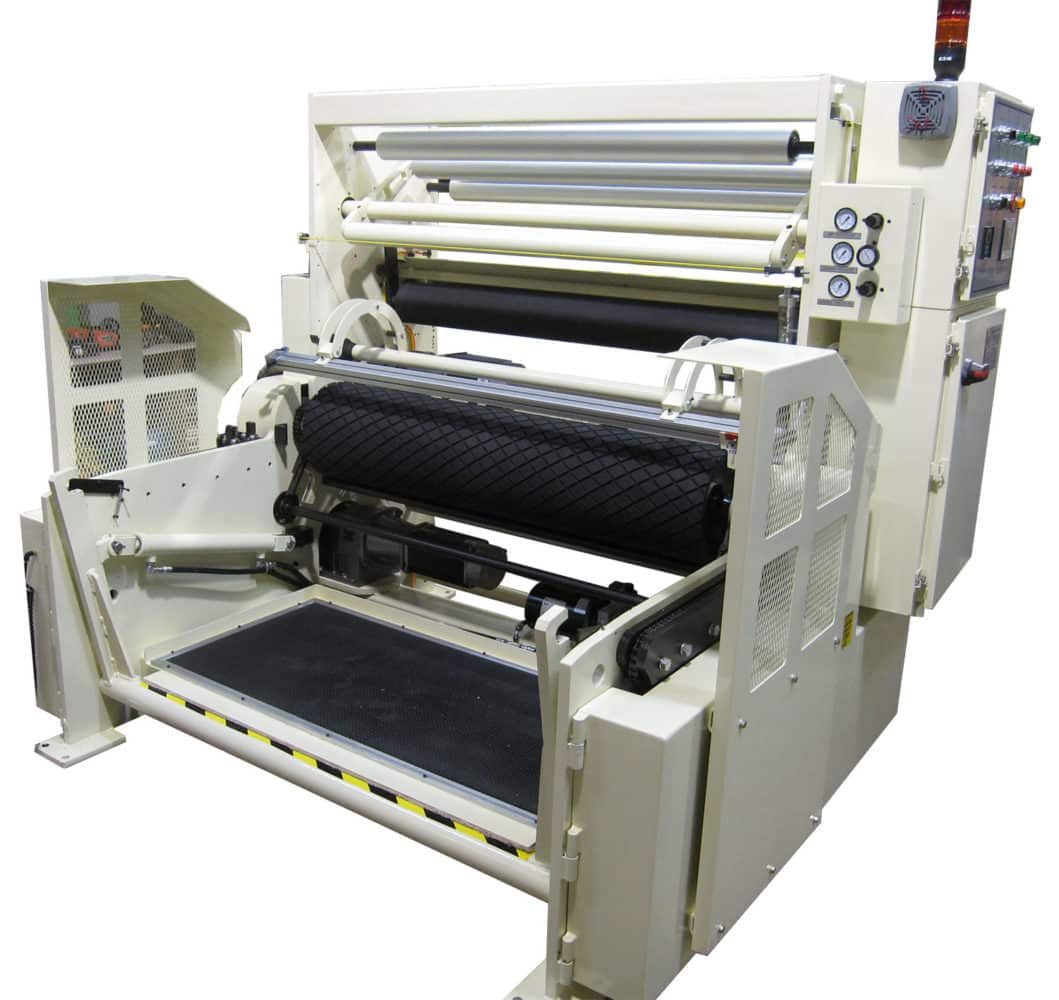

The Surface Winder is a fully automated winding machine with a heavy duty build ideal for large diameter rolls. With a heavy duty motor, inline gear box, and a set of steel and rubber nip rollers, the surface winder operates up to 325 ft/min handling roll diameters up to 40” and 3000 lbs. Automatic roll changes occur at a set length where the roll is cut by a fly cutter and unloaded using a hydraulic arm. A constant winding pressure is achieved by horizontal movement of the carriage. Our surface winders can be grouped in face-to-face, back-to-back, or two-stage arrangements for sheeting.

Surface Winder Features:

N

Heavy duty air shafts

N

Automatic roll changeover with fly cutter air knife

N

Hydraulic arm for easyloading/unloading

N

Bow banana or spreader roller

N

Available in single or double arrangement

N

Machine Width: 54" - 124" (1370 - 3150mm)

N

Machine Roll Diameter: 40" dia (1015mm)

N

Maximum Speed: 450 ft/min (135m/min)

Please contact us if you would like more information on the Surface Winder.
